Product details of MSI A320M-A Pro Max DDR4 AMD AM4 Socket Mainboard

Model MSI A320M-A Pro Max

Chipset AMD A320

Form Factor M-ATX

Sockets Supported AM4

Supported CPU AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics & A-series/Athlon X4 Processors

Supported Operating SystemWindows 7 / 10

Memory Type DDR4

Memory MHz 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200MHz

Memory Channel Dual

Memory Slot 2

Memory Max.32GB

Optane Memory Support No

Graphics Onboard Graphics

Multi-GPU Support No

PCI Express Slot 1 x PCIe 3.0 x16 slot, PCIe 2.0 x1 slot

DirectX Support 12

Storage Interface 6.0Gb/s

M.2/SSD Expansion Slot 1

SATA Port 4 x SATA

Raid Support 0, 1, 10

LAN Chipset Realtek 8111H Gigabit LAN

LAN Speed (Mbps) 10/100/1000Mbps

USB Port 6 x USB3.2 Gen 1, 6 x USB2.0

DVI Port 1

HDMI Port 1

Audio Chipset. Realtek ALC892

Audio Channel 7.1

WiFi No

Bluetooth No

TPM Port Yes

Feature AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1, Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs, Audio Boost, X-Boost, Software that auto-detects and allows to boost the performance of any storage or USB device, Core Boost With premium layout and fully digital power design to support more cores and provide better performance, Heavy Plated Heatsinks, Leading heatsinks design, for maximum cooling

Others1 x M.2 slot, 1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x Front panel connectors, 1x TPM module connector, 1x Chassis Intrusion connector, 1x Serial port connector, 1x Clear CMOS jumper, HD Audio Connectors, 6 mounting holes

MSI A320M-A Pro Max DDR4 AMD AM4 Socket Mainboard

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

Supports DDR4 Memory, up to 3200 (OC) MHz

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

Audio Boost: Reward your ears with studio grade sound quality.

X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

DIY FRIENDLY

MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.

STAY COOL FOR RELIABLE SYSTEM

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

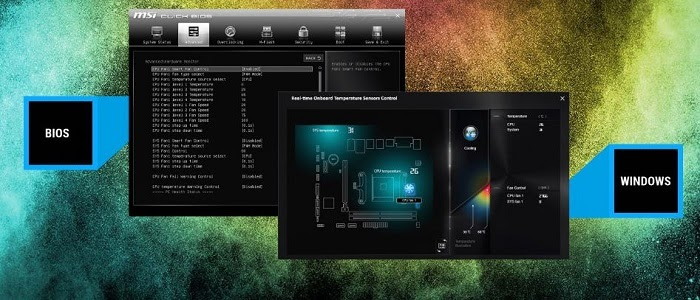

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

IN-STUDIO ADVANTAGE

MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.

Model - MSI A320M-A Pro Max, CPU Sockets - AM4, Chipset - AMD A320 Chipset, Supported CPU - AMD Ryzen 1st / 2nd / 3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics & A-series / Athlon X4 Processors, Memory Type - DDR4, Memory MHz - 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200MHz, Memory Channel - Dual Channel, Memory Slot - 2, Memory Max. - 32GB, Optane Memory Support - No, Graphic - Onboard Graphics, Multi-GPU Support - No, PCI Express Slot - 1 x PCIe 3.0 x16 slot, PCIe 2.0 x1 slot, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 slot (Supports PCIe 3.0 x4 and SATA 6Gb/s / Supports PCIe 3.0 x2 and SATA 6Gb/s / Supports 2242/ 2260/ 2280/ 22110 storage devices), LAN Chipset - Realtek 8111H Gigabit LAN, LAN Speed (Mbps) - 10 / 100 / 1000Mbps, Audio Chipset - Realtek ALC892, Audio Channel - 7.1-Channel, WiFi - No, Bluetooth - No, USB Port - 6 x USB3.2 Gen 1, 6 x USB2.0, VGA Port - No, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 4 x SATA, DirectX Support - 12, FireWire - No, CrossFire Support - No, Sli Support - No, RaidSupport - 0,1,10, Thunderbolt - No, TPM Port - Yes, COM Port - No, Form Factor - M-ATX, Supported Operating System - Windows 7 / 10, Special Features - AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1, Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs, Audio Boost, X-Boost, Software that auto-detects and allows to boost the performance of any storage or USB device, Core Boost With premium layout and fully digital power design to support more cores and provide better performance, Heavy Plated Heatsinks, Leading heatsinks design, for maximum cooling, Others - 1 x M.2 slot, 1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x Front panel connectors, 1x TPM module connector, 1x Chassis Intrusion connector, 1x Serial port connector, 1x Clear CMOS jumper, HD Audio Connectors, 6 mounting holes,

Specifications of MSI A320M-A Pro Max DDR4 AMD AM4 Socket Mainboard

BrandMSI

SKU DQECMB03

Number of memory slots2

Form FactorMicro ATX

ModelMSI A320M-A Pro Max
