MSI B450M Mortar Max DDR4 AMD AM4 Socket Mainboard

MSI B450M Mortar Max DDR4 AMD AM4 Socket Mainboard

Product details of MSI B450M Mortar Max DDR4 AMD AM4 Socket Mainboard

Model MSI B450M Mortar Max

Chipset AMD B450

Form Factor Micro ATX

Sockets Supported AM4

Supported CPU AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics

Supported Operating System Windows 7 / 10

Memory Type DDR4

Memory MHz 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133MHz

Memory Channel Dual

Memory Slot 4

Memory Max. 64GB

Optane Memory Support No

Graphics Onboard Graphics

Multi-GPU Support 2-Way AMD CrossFire

PCI Express Slot 1 x PCIe 3.0 x16 slot (PCI_E1), 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode), 2 x PCIe 2.0 x1 slots

DirectX Support 12

CrossFire Support Yes

Storage Interface 6.0Gb/s

M.2/SSD Expansion Slot 2

SATA Port 4 x SATA

Raid Support 0, 1, 10

LAN Chipset Realtek RTL8111H-CG Gigabit LAN

LAN Speed (Mbps) 10/100/1000Mbps

USB Port 1 x USB3.2 Gen 2 Type-C, 1 x USB3.2 Gen 2 Type-A, 6 x USB3.2 Gen 1 Type-A, 6 x USB2.0

HDMI Port 1

Audio Chipset. Realtek ALC892

Audio Channel 7.1

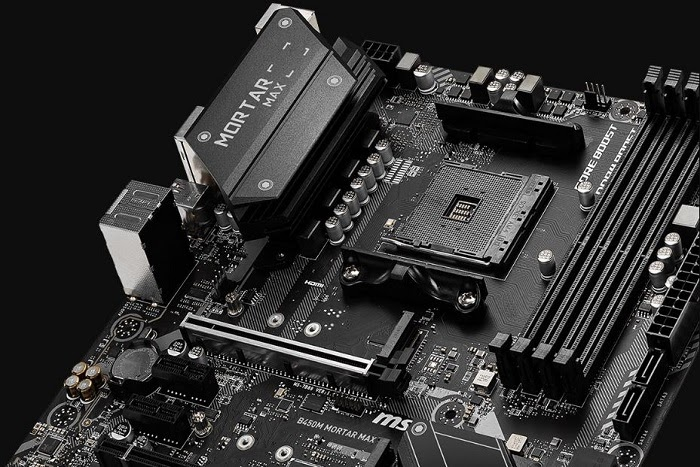

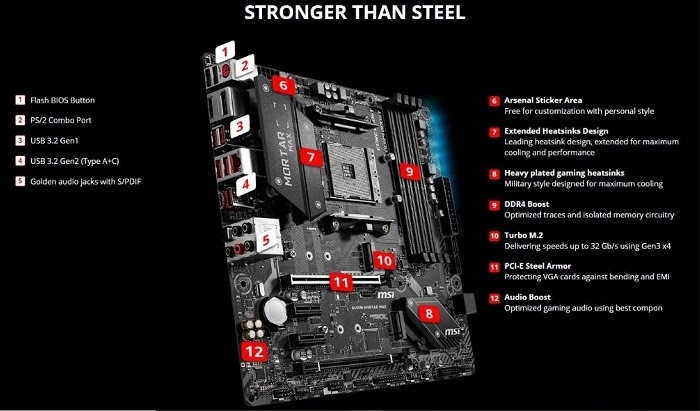

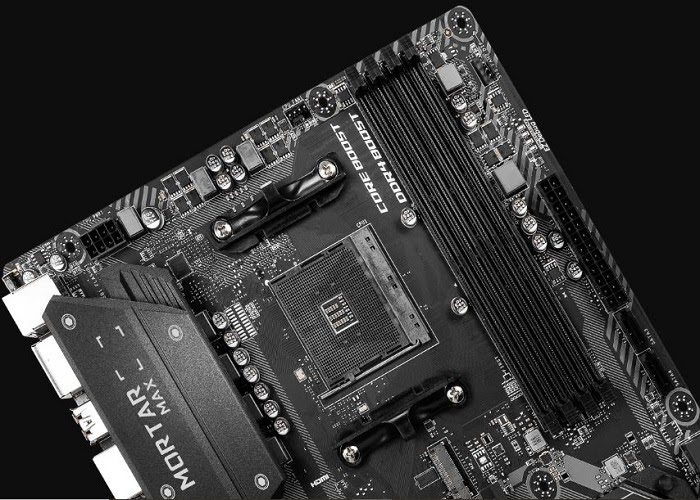

MSI B450M Mortar Max

Military style with Extended heatsink design for better thermal solution, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector

Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4

Supports DDR4 Memory, up to 4133(OC) MHz

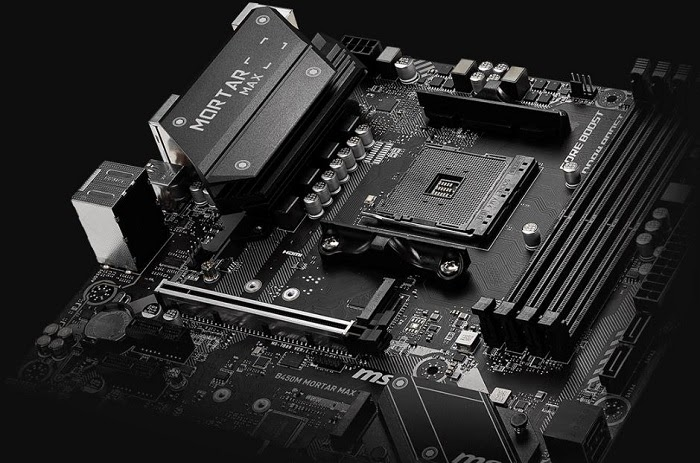

Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.

Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology

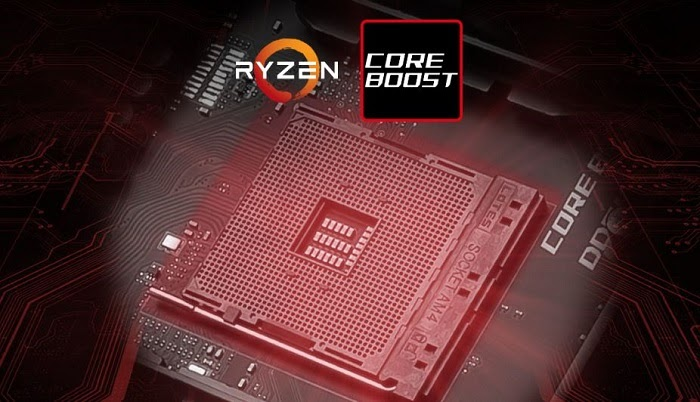

Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability

MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire

Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card

MSI APP PLAYER

Developed under an exclusive partnership with BlueStacks, the MSI APP Player brings seamless mobile gaming experiences to PCs. Leverage the advantages of mouse and keyboard controls, better graphics, and multi-tasking for mobile gaming supremacy.

PERFORMANCE ENHANCING APPS

Complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment.

Specifications of MSI B450M Mortar Max DDR4 AMD AM4 Socket Mainboard

BrandMSI

SKU DQECMB04

Motherboard Memory TechnologyDDR4

Number of memory slots4

Form FactorMicro ATX

What’s in the box

1x MSI B450M Mortar Max DDR4 AMD AM4 Socket Mainboard
