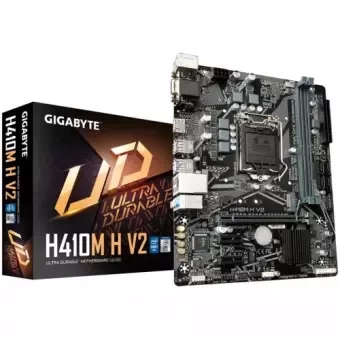

Gigabyte H410M H V2 10th & 11th Gen Motherboard

Gigabyte H410M H V2 10th & 11th Gen Motherboard

Product details of Gigabyte H410M H V2 10th & 11th Gen Motherboard

Supports 10th Gen Intel®Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

8-Channel HD Audio with High Quality Audio Capacitors

NVMe PCIe Gen3 x4 2280 M.2 Connector

Intel® GbE LAN with cFosSpeed Internet Accelerator Software

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

GIGABYTE APP Center, Simple and Easy Use

Anti-Sulfur Resistors Design

Supported CPU

Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package

Chipset

Intel H410 Express Chipset

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor: 22.6cm x 18.5cm

Expansion Slots

PCI

1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots

M.2 Socket

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/ x2 SSD support)

Memory

Type

DDR4

Slots

2 x DIMM

Supported Memory

Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

64GB (32 GB single DIMM capacity)

Graphics

Graphics

Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz

Max Shared Memory

512MB

Connector & Ports

HDMI

1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz

D-Sub (s)

1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz

USB (s)

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/ 1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s)

Intel GbE LAN chip (1 Gbit/100 Mbit)

Supported Storage

1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe x4/ x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready

Audio

Realtek Audio CODEC High Definition Audio 2/ 4/ 5.1/ 7.1-channel

Internal I/O Ports

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Warranty Information

Manufacturing Warranty

03 Years

Specifications of Gigabyte H410M H V2 10th & 11th Gen Motherboard

BrandGigabyte

SKU DQECMB01

Number of memory slots2

Form FactorMicro ATX

What’s in the box

Motherboard
