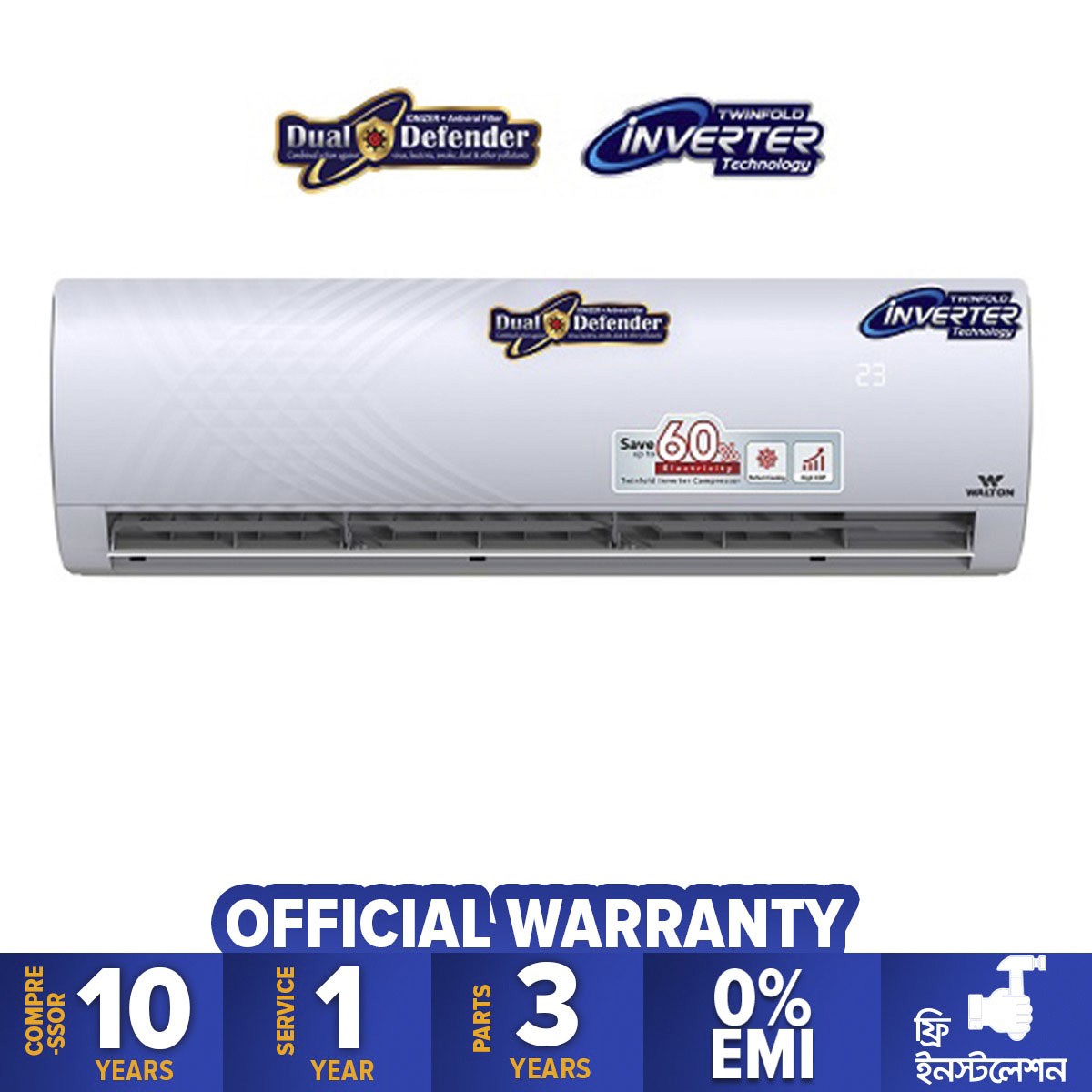

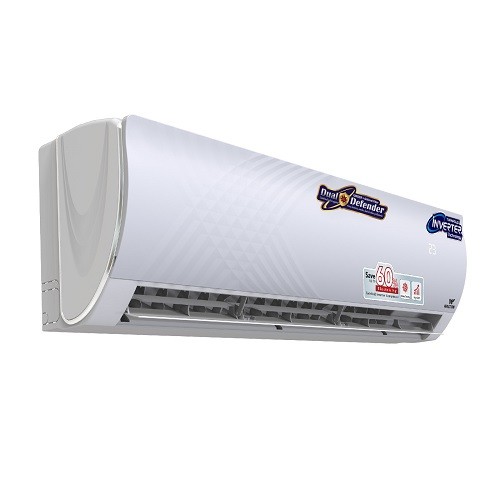

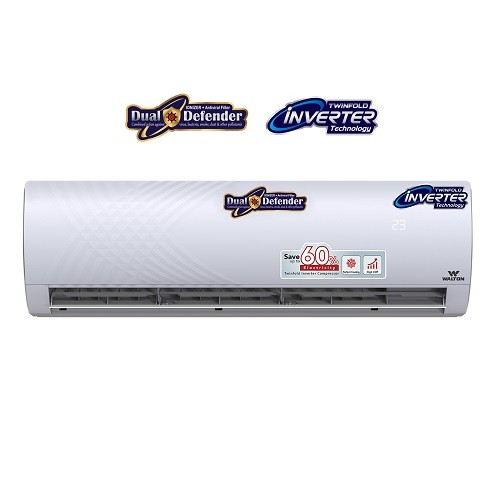

Walton Air Conditioner WSI-KRYSTALINE-18C [Defender] Split AC- 1.5 ton Inverter AC with Twinfold Inverter Technology

dq-dr-th-AC-138


Product details of Walton Air Conditioner WSI-KRYSTALINE-18C [Defender] Split AC- 1.5 ton Inverter AC with Twinfold Inverter Technology

Free installation will be provided all over Bangladesh. Customer needs to pay for Iron angle (if required). Once the item is delivered, please call Walton Customer Care. Installation will be done within 72 hours

Function: Cooling.

BTU/hr: 18000

Cooling Capacity (watts): 5275

COP: 3.5

Rated Input Power (Watts): 1507

Power Supply (phase/voltage (V) /frequency (Hz) /current (A)): single/ 220-240/ 50/ 6.55

Air Circulation (m3/h): 800

Cooling Features

Compressor Type: Rotary (Inverter)

Refrigerant Type: R-410a

Refrigerant Amount (kg): 1.13 kg

Outdoor Operating Range (outdoor temperature): 200C -430C

Evaporator Fin Type: Louver Fin

Condenser Type: Copper Tube Condenser

Condenser Fin Type: Slit Fin

Maximum Pipe Length: 10m

Operations

Modes Turbo Mode (Faster Cooling): Yes

ECO Mode (Power Saving): Yes

Auto Operation: Yes

Dry Mode: Yes

Fan Mode: Yes

Speed Setting: Yes (Auto, High, Medium, Low)

Auto Restart Yes

Comfort Cooling Yes

Timer Yes

Sleep Yes

Air Deflection

Auto UP-Down Swing: Yes

Auto Left-Right Swing: Yes

Remote Control

Display Type: LCD

Operation/Control: Via IR (Infrared Ray)

Child Lock: Yes

Health: Yes

Temperature Unit Change: Yesto 310C

Dimensions

Indoor (mm) [LXWXH]: Unit-947x321x235

Packing-1025 x400 x300

Outdoor (mm) [LXWXH]: Unit-865 x 370 x 687

Packing-935 x 435 x 750

Weights

Net Weight (Indoor) (Kg): 12.5 ±0.5

Gross Weight (Indoor) (Kg): 15 ±0.5

Net Weight (Outdoor) (Kg): 37 ±1

Gross Weight (outdoor) (Kg): 42 ±1.

Function:Cooling

BTU/hr:18000

Rated Voltage: 220V-240V ~ 50Hz

Rated Input Power (W): Version 0304: 1507

Version 0307: 1425

Version 0407: 1425

Rated Current (A): Version 0304: 6.55

Version 0304: 6.37

Version 0407: 6.25

Cooling Capacity (W): 5275

COP: Version 0304: 3.5

Version 0307: 3.70

Version 0407: 3.70

Compressor Type: Rotary (Inverter)

Refrigerant Type: Version 0304 - R-410a

Version 0307 - R-32

Version 0407 - R32

Refrigerant Amount (Kg): Version 0304: 1.13

Version 0307: 0.74

Version 0407: 0.74

Operating Range (Ambient Temperature):20C to 43C

Evaporator Fin Type: Louvered Fin

Condenser Type: Copper Tube Condenser

Condenser Fin Type: Slit Fin

Maximum Pipe Length: 12ft

Turbo Mode (Maximum Cooling): Yes

ECO Mode (Power Saving): Yes

Dry Mode: Yes

Fan Mood: Yes

Auto Operation: Yes

Auto Restart: Yes

Comfort Colling: Yes

Speed Setting: Yes (Auto, High, Medium, Low)

Timer: Yes

Sleep: Yes

Display Type: LCD

Operation/Control: Via IR (Infrared Ray)

Child Lock: Yes

Temperature Unit Change: Yes (16​°C to 31°C)

Auto UP-Down Swing: Yes

Auto Left-Right Swing: Yes

Indoor Dimensions (mm) [L×W×H] :Unit: 947 x 321 x 235

Packing: 1025 x 400 x 300

Outdoor Dimensions (mm) [L×W×H] :Unit: 865 x 370 x 687

Packing: 935 x 435 x 750

Net Weight (Indoor) (Kg) :12.5 ± 0.5

Gross Weight (Indoor) (Kg) :15 ± 0.5

Net Weight (Outdoor) (Kg):Version 0304: 37 ± 1

Version 0307: 32.5 ± 1

Version 0407: 32.5 ± 1

Gross Weight (outdoor) (Kg) : Version 0304: 42 ± 1

Version 0307: 37.5 ± 1

Version 0407: 37.5 ± 1

Specifications of Walton Air Conditioner WSI-KRYSTALINE-18C [Defender] Split AC- 1.5 ton Inverter AC with Twinfold Inverter Technology

BrandWaltonSKU181476673_BD-1123168370InverterYesAir Conditioner Rated Capacity (BTUs)1.5 Ton / 18000 BTUType Air ConditionerSplit ACModelWSI-KRYSTALINE-18C [Defender]Warranty Policy ENProduct Replacement guarantee: 1 Year, Warranty Information: Compressor Warranty: 10 Years Spare Parts support: 3 Years After Sales Service: 1 Year Free Commercial Use: Compressor Warranty: 3 Years Spare Parts support: 2 Years After Sales Service: 1 Year Free

What’s in the box Walton Air Conditioner WSI-KRYSTALINE-18C [Defender] Split AC- 1.5 ton Inverter AC with Twinfold Inverter Technology
