10Pcs Stepstick Drv8825 Stepper Motor Driver 4 PCB Board Replace A4988 3D Printer Parts for SKR V1.3 PRO MKS GEN

10Pcs Stepstick Drv8825 Stepper Motor Driver 4 PCB Board Replace A4988 3D Printer Parts for SKR V1.3 PRO MKS GEN

Product details of 10Pcs Stepstick Drv8825 Stepper Motor Driver 4 PCB Board Replace A4988 3D Printer Parts for SKR V1.3 PRO MKS GEN

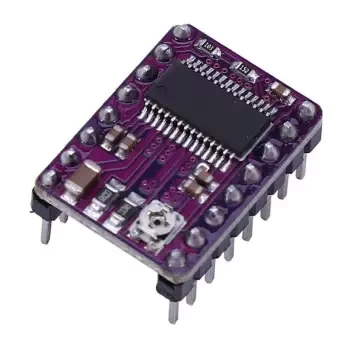

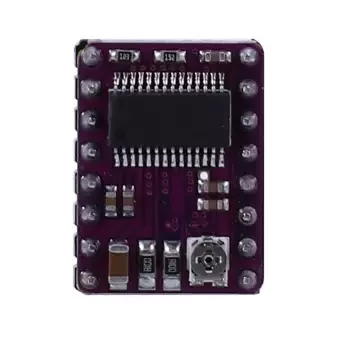

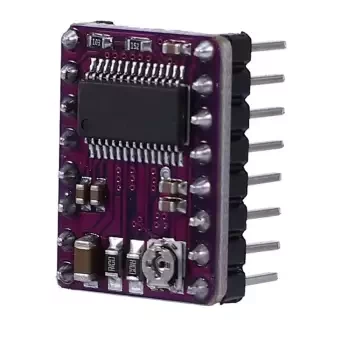

The DRV8825 stepper motor driver carrier board TI DRV8825 Micro-bipolar stepper motor drive is a breakthrough. The module has a pinout and interface with our A4988 stepper motor driver carrier is almost the same, so it can be used as a better performance of the pull-down menu board replacement in many applications.DRV8825 features an adjustable current limit, overcurrent and overtemperature protection, six micro-resolution (down 1/32-step). It uses 8.2 - 45 V, can provide up to about 1.5 per phase no heat sink or forced air flow (rated up to 2.2 per volume sufficient additional cooling).Color: purpleMaterial: PCB

The DRV8825 stepper motor driver carrier board TI DRV8825 Micro-bipolar stepper motor drive is a breakthrough. The module has a pinout and interface with our A4988 stepper motor driver carrier is almost the same, so it can be used as a better performance of the pull-down menu board replacement in many applications.

DRV8825 features an adjustable current limit, overcurrent and overtemperature protection, six micro-resolution (down 1/32-step). It uses 8.2 - 45 V, can provide up to about 1.5 per phase no heat sink or forced air flow (rated up to 2.2 per volume sufficient additional cooling).

Color: purple

Material: PCB

A simple steps and direction control interface

Six different steps resolutions: full step, half step, 1/4-step1/8-step1/16-step, 1/32-step

CAN interface directly with 3.3 V and 5 V systems

Over-temperature thermal shutdown, overcurrent shutdown, undervoltage lockout

short to ground short circuit load protection

4 Layer 2 oz copper PCB, in order to improve heat dissipation

Exposed solder ground below the bottom of the driver IC on the printed circuit board pad

Module size, pin and interface matching A4988 stepper motor driver operators in many ways

Adjustable current control lets you set a potentiometer, which lets you use the stepper motor's rated voltage or more, in order to achieve a higher rate of maximum output current step

Intelligent chopping control automatically selects the correct current decay mode (fast decay or slow decay)

Maximum 45 V supply voltage

Built-in voltage regulator (the need for any external logic supply voltage)

Contains:

10* Module

10* radiator

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Specifications of 10Pcs Stepstick Drv8825 Stepper Motor Driver 4 PCB Board Replace A4988 3D Printer Parts for SKR V1.3 PRO MKS GEN

SKU DQEPST06

usb_generationNot Specified

number_of_baysNot Specified

plug_and_playNot Specified

write_speedNot Specified

adjustable_fan_speedNot Specified

number_of_socketsNot Specified

number_of_modulesNot Specified

antenna_typeNot Specified

connectivityNot Specified

ModelDriver

What’s in the box

10Pcs Stepstick Drv8825 Stepper Motor Driver 4 PCB Board Replace A4988 3D Printer Parts for SKR V1.3 PRO MKS GEN
